iXscient can supply precision microstructured tooling moulds for Fresnel lenses (radial and linear), as well as prismatic and lenticular tools. Tools are precision diamond cut onto nickel or copper coated blanks or drums.



Projects have included:-

  • Flat and curved linear lens drum tools for solar concentrators
  • Lenticular tools for structured glass
  • Prismatic tools for optical systems

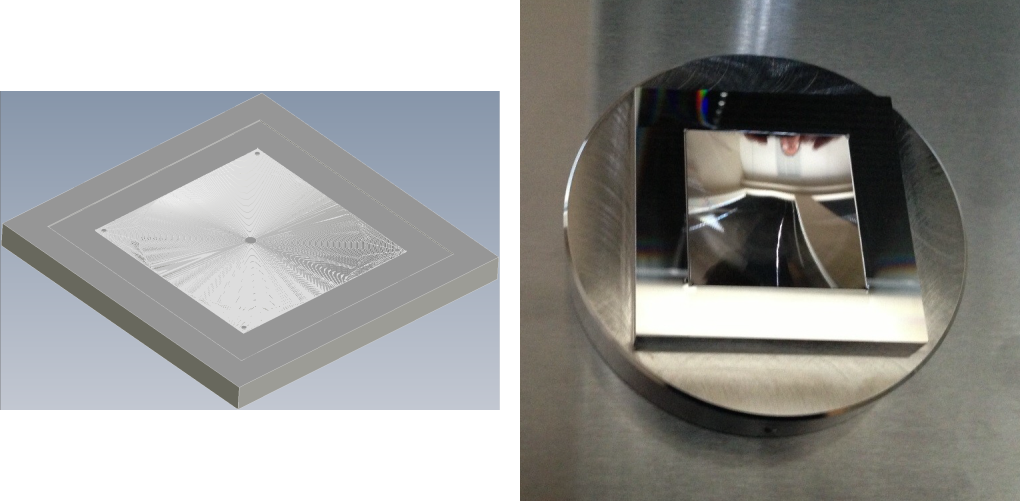

Radial Fresnel Lens Design and Tool

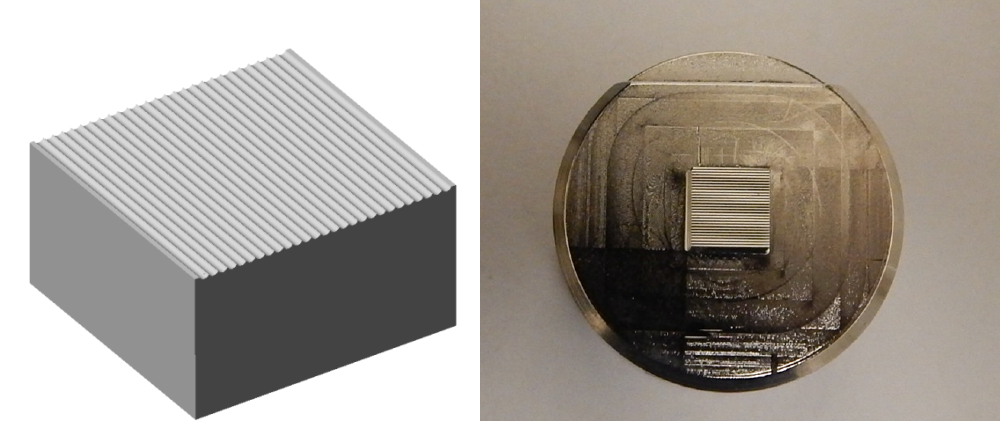

Lenticular Design and Tool
